Desalination High Pressure Pump supplier
JPFS

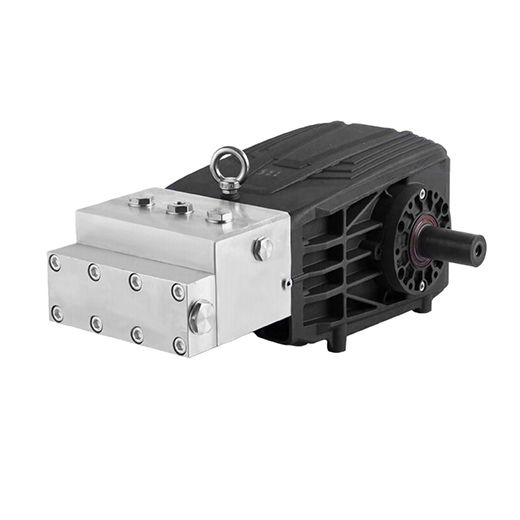

High Pressure Ceramic Plunger Pump
Cold Water Triplex High Pressure Cleaner for Desalination
30-75l/min
280-600bar
Cold Water Triplex High Pressure Cleaner for Desalination
30-75l/min
280-600bar
Delivery
FOB
minimum order
1 set
Country of Origin
NINGBO
Stock Time
10Day
Quantity
We are top manufactory in china for stainless steel high pressure triplex p lunger pump
1.Enviromental sanitation stainless steel high pressure triplex plunger pump
sea water desalination system jetter pump plunger pumps
Widely used in urban underground,ground and ground cleaning,can be used for pipeline dredge,pavement weline and dust,station,cleaning and disinfection( square, station,garbage station eto) public facilities and buildings cleaning and disinfection ,haze prevention.
2.marine and chemical industry Widely used in ships and driling platform build,repar pipeline booster and pressure test,cleaning ,in addition to rust paint and remove marine attached to biology,the ship and the island of the seawater desalination system,for dock,yard and other cleaning.
3.Casting metallurgy Widely used on the steel surface in addition to scale,rust and scavenging metal oxide layer for mondestructive cleaning sand casting and the die surface,for the bar material surface in addition to scales,weld burr and cleaning metallurgy for heat excharger boiler feed tank storage of dirt.
| JPFS | |||||||||
| Model | Flow | Pressure | Power | Speed | Plunger Dia | Stroke | |||
| L/min | GPM | bar | psi | HP | kW | rpm | mm | mm | |
| JPFS18 | 30 | 8.1 | 600 | 8700 | 46.6 | 34.3 | 800 | 18 | 50 |
| 36 | 9.52 | 600 | 8700 | 56 | 41.1 | 1000 | 18 | 50 | |
| JPFS20 | 47 | 12.4 | 400 | 5800 | 48.7 | 35.8 | 1000 | 20 | 50 |
| JPFS22 | 45 | 12 | 400 | 5800 | 46.6 | 34.3 | 800 | 22 | 50 |
| 57 | 15 | 350 | 5075 | 51.7 | 38 | 1000 | 22 | 50 | |
| JPFS25 | 75 | 19.3 | 280 | 4060 | 54.4 | 40 | 1000 | 25 | 50 |

Stainless steel Manifold,
Die-cast Alloy Crankcase.
Aluminum Connecting Rod, High Precision Finish
Ceramic Plunger, Precision Grinding
Double Pressure Packing, High-Low with integrated cooling
Symmetrical Design,Easy Shaft Conversion of Left to Right
Die-cast Alloy Crankcase.
Aluminum Connecting Rod, High Precision Finish
Ceramic Plunger, Precision Grinding
Double Pressure Packing, High-Low with integrated cooling
Symmetrical Design,Easy Shaft Conversion of Left to Right
