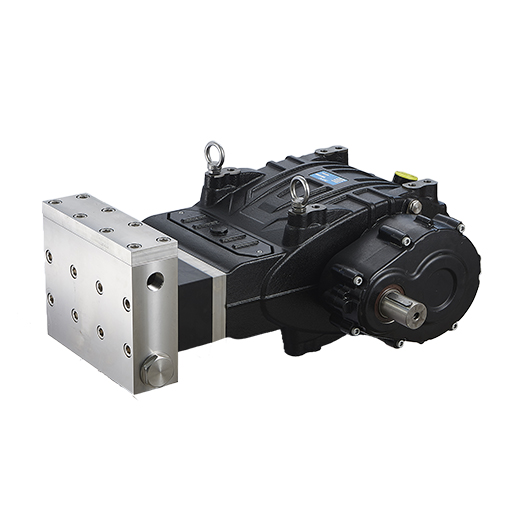

Heavy Duty Stainless Steel Triplex Plunger Pump Car Wash Shops
MWF32-40
2205 STAINLESS STEEL
138-211 L/MIN
150-200BAR
138-211 L/MIN
150-200BAR
Delivery
FOB NINGBO
minimum order
1 piece
Country of Origin
NINGBO
Stock Time
10Day
Quantity
We always supply high performance stainless steel high pressure triplex plunger pump
MWF Series Stainless Steel Triplex Plunger Pump Valve Cover Gear Box Heavy Duty Transmission Cold Water High Pressure Cleaner 1.Enviromental sanitation Widely used in urban underground,ground and ground cleaning,can be used for pipeline dredge,pavement weline and dust,station,cleaning and disinfection( square, station,garbage station eto) public facilities and buildings cleaning and disinfection ,haze prevention. 2.marine and chemical industry
Widely used in ships and driling platform build,repar pipeline booster and pressure test,cleaning ,in addition to rust paint and remove marine attached to biology,the ship and the island of the seawater desalination system,for dock,yard and other cleaning. 3.Casting metallurgy
Widely used on the steel surface in addition to scale,rust and scavenging metal oxide layer for mondestructive cleaning sand casting and the die surface,for the bar material surface in addition to scales,weld burr and cleaning metallurgy for heat excharger boiler feed tank storage of dirt.
Widely used in ships and driling platform build,repar pipeline booster and pressure test,cleaning ,in addition to rust paint and remove marine attached to biology,the ship and the island of the seawater desalination system,for dock,yard and other cleaning. 3.Casting metallurgy
Widely used on the steel surface in addition to scale,rust and scavenging metal oxide layer for mondestructive cleaning sand casting and the die surface,for the bar material surface in addition to scales,weld burr and cleaning metallurgy for heat excharger boiler feed tank storage of dirt.
HIGH PRESSURE PUMP,stainless steel high pressure triplex plunger pump,
water jet plunger pump
Stainless Steel Manifold,
Die-cast Alloy Crankcase.
Aluminum Connecting Rod, High Precision Finish
Ceramic Plunger, Precision Grinding
Double Pressure Packing, High-Low with integrated cooling
Symmetrical Design,Easy Shaft Conversion of Left to Right

| Model | Flow | Pressure | Power | speed | Plunger Dia | Stroke | |||
| L/min | GPM | bar | psi | HP | kW | rpm | mm | mm | |
| MWF32 | 138 | 35.6 | 200 | 2900 | 71 | 52 | 1500 | 32 | 70 |
| MWF36 | 171 | 45.2 | 200 | 2900 | 91 | 67 | 1500 | 36 | 70 |
| MWF40 | 211 | 55.7 | 150 | 2175 | 84 | 62 | 1500 | 40 | 70 |
