JV30 85 l/min - 22.5 USGpm Regulator Valve
JV30
JV30 85 l/min - 22.5 USGpm Regulator Valve
High Flow Pressure Regulator/Unloader
releases pressure in pump head when in bypass and discharge the water from the bypass port.
High Flow Pressure Regulator/Unloader
releases pressure in pump head when in bypass and discharge the water from the bypass port.
Delivery
FOB
minimum order
1 piece
Country of Origin
NINGBO
Stock Time
10Day
Quantity
JV30 85 l/min - 22.5 USGpm Regulator Valve
| JV30 | High Flow Pressure Regulator/Unloader | ||
| Rated Flow Rate | 85 l/min - 22.5 USGpm | Professional heavy-duty high volume high pressure, trap type pressure adjustable unloader,releases pressure in pump head when in bypass and discharge the water from the bypass port. | |
| Rated Temperature | 90 °C - 194 °F | Brass body and stainless steel valve core,Pressure adjustable by screw and locknut for secure the working pressure. | |
| Material | Forged brass | Commonly use for industrial application,like sewer cleaning,car washing etc. | |
| Application | JPD pump |

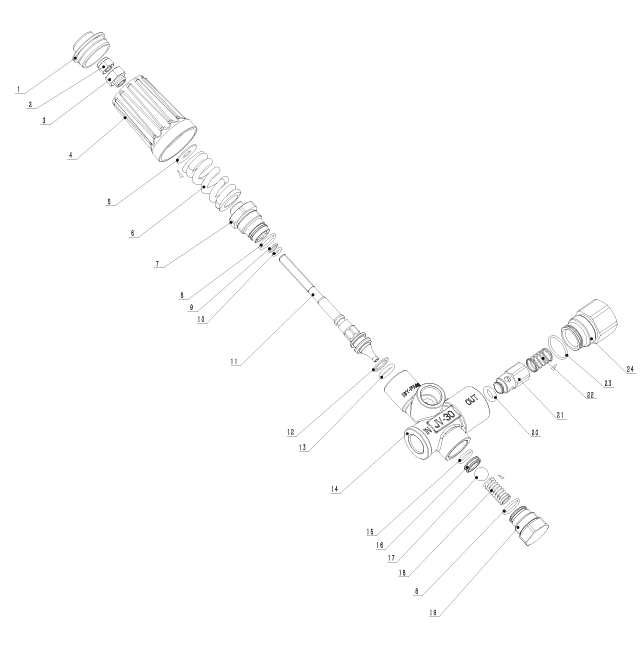

| JV30 BOM LIST | |||
| NO | CODE | community | QTY |
| 1 | 500103011 | Pressure regulating handle cover | 1 |
| 2 | 590203004 | Hexagonal lock nut with non-metallic insert | 1 |
| 3 | 500103010 | JV30 Voltage Regulating handle positioning sleeve | 1 |
| 4 | 500103008 | JV30 Voltage regulating handle | 1 |
| 5 | 500103009 | JV30 Pressure regulating spring gasket | 1 |
| 6 | 500103007 | JV30 pressure regulating spring | 1 |
| 7 | 500103005 | JV30 Pressure regulating Spring seat | 1 |
| 8 | 590101057 | O-ring | 2 |
| 9 | 590103001 | Open retaining ring | 1 |
| 10 | 590101046 | O-ring | 1 |
| 11 | 500103006 | JV30 pressure regulating screw | 1 |
| 12 | 590103003 | split washer | 1 |
| 13 | 590101052 | O-ring | 1 |
| 14 | 500103004 | JV30 valve body | 1 |
| 15 | 590101053 | O-ring | 1 |
| 16 | 500103003 | JV30 sealing gasket | 1 |
| 17 | 500013001 | Steel ball | 1 |
| 18 | 500103002 | JV30 cone valve support spring | 1 |
| 19 | 500103001 | JV30 Cone valve mounting seat | 1 |
| 20 | 590101005 | O-ring | 1 |
| 21 | 500103014 | JV30 outlet valve | 1 |
| 22 | 500103013 | Spring of JV30 outlet valve | 1 |
| 23 | 590101109 | O-ring | 1 |
| 24 | 590506004 | JV30 water outlet joint | 1 |
