JV50 80 l/min - 21.1 USGpm Regulate Valve
JV50
JV50 80 l/min - 21.1 USGpm Regulate Valve
High Flow Pressure Regulator/Unloader
releases pressure in pump head when in bypass and discharge the water from the bypass port.
High Flow Pressure Regulator/Unloader
releases pressure in pump head when in bypass and discharge the water from the bypass port.
Delivery
FOB
minimum order
1 piece
Country of Origin
NINGBO
Stock Time
10Day
Quantity
| JV50 | High Flow Pressure Regulator/Unloader | ||
| Rated Flow Rate | 80 l/min - 21.1 USGpm | Professional heavy-duty high volume high pressure, trap type pressure adjustable unloader,releases pressure in pump head when in bypass and discharge the water from the bypass port. | |
| Rated Temperature | 90 °C - 194 °F | Stainless steel and stainless steel valve core,Pressure adjustable by screw and locknut for secure the working pressure. | |
| Material | 304 stainless steel | Commonly use for industrial application,like sewer cleaning,car washing etc. | |
| Application | JPDH pump |

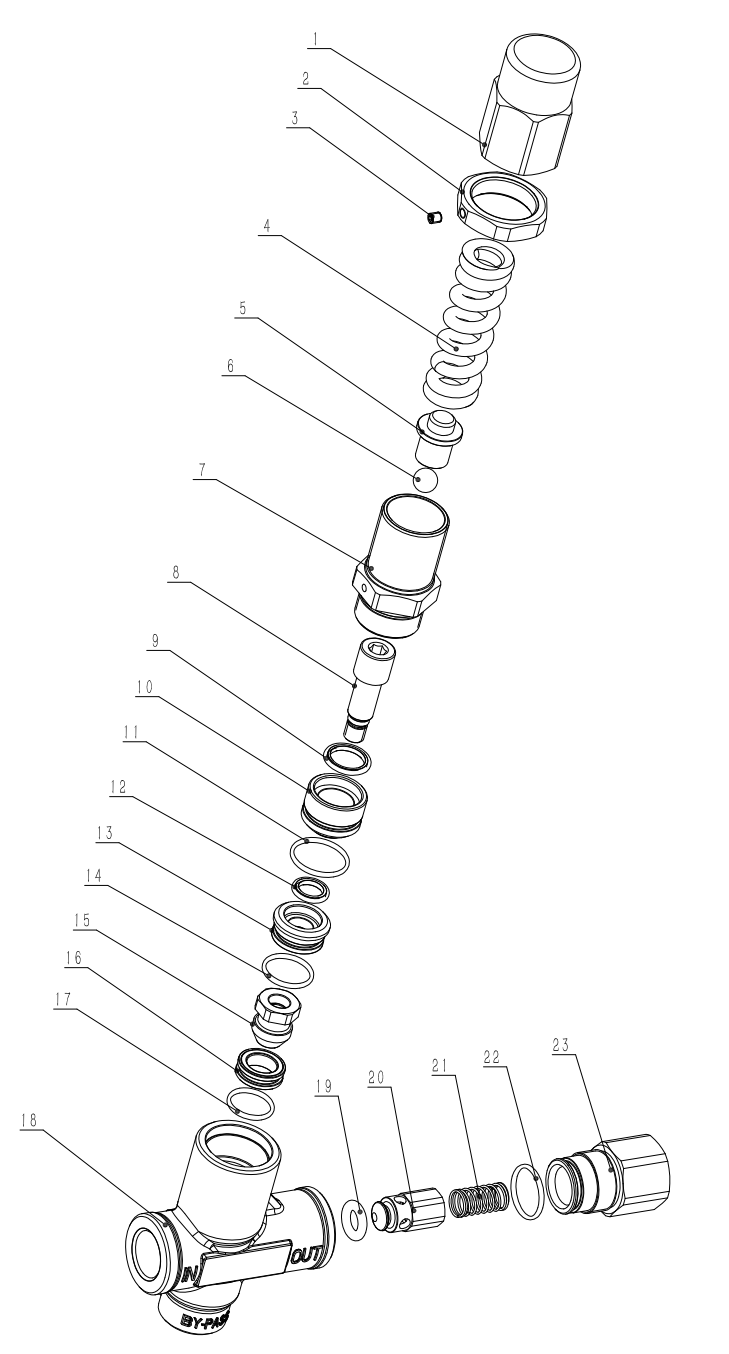

| JV50 BOM LIST | |||
| NO | CODE | community | QTY |
| 1 | 500103107 | JV50 Voltage regulating nut | 1 |
| 2 | 590203002 | Lock nut | 1 |
| 3 | 590207011 | flat point set screw | 1 |
| 4 | 500103023 | JV50 pressure regulating spring | 1 |
| 5 | 500013008 | Steel ball seat | 1 |
| 6 | 500013002 | Steel ball | 1 |
| 7 | 500103022 | JV50 valve seat | 1 |
| 8 | 500103020 | JV50 valve stem | 1 |
| 9 | 590206007 | Axle Gray ring | 1 |
| 10 | 500103019 | JV50 Pressure Balance Seat | 1 |
| 11 | 590101020 | O-ring | 1 |
| 12 | 590206006 | Axle Gray ring | 1 |
| 13 | 500103018 | JV50 valve stem guide ring | 1 |
| 14 | 590101017 | O-ring | 1 |
| 15 | 500103017 | JV50 Cone valve | 1 |
| 16 | 500103016 | JV50 sealing gasket | 1 |
| 17 | 590101014 | O-ring | 1 |
| 18 | 500103015 | JV50 valve body | 1 |
| 19 | 590101004 | O-ring | 1 |
| 20 | 500103024 | JV50 Check valve for water outlet | 1 |
| 21 | 500103025 | Spring of JV50 water outlet check valve | 1 |
| 22 | 590101018 | O-ring | 1 |
| 23 | 500103026 | JV50 Check valve seat for water outlet | 1 |
